Drawer Slides

We offer a complete selection of European and full-extension ballbearing slides for the kitchen, closet, furniture, desk, institutional, RV and hospitality industries.  We offer same-day or next business day shipping on most items.

Please call your nearest ESI location for more details.

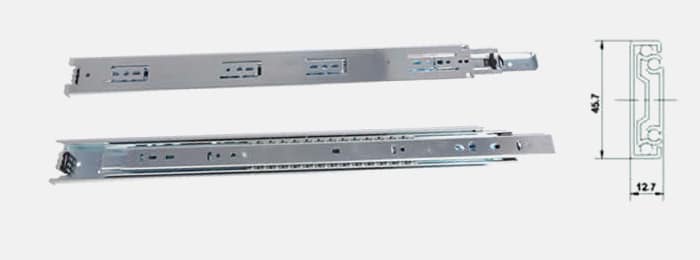

 MODEL 4600 Standard Ball-Bearing Slide

* Full Extension
* Side Mounted
* 46mm Height
* Flat Sided Profile
* 12.7mm Side Clearance
* Finish: Zinc or Black
* Lever Disconnect
* Size: 10" ~ 28"
* Load Capacity: 100 lbs
* Material: Cold Rolled Steel

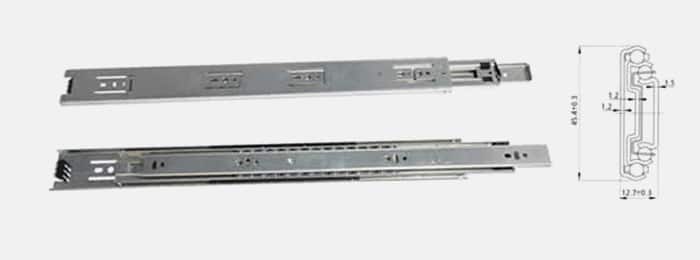

 MODEL 4800 Standard Ball-Bearing Slide

* Full Extension
* Side Mounted
* 46mm Height
* Round Sided Profile
* 12.7mm Side Clearance
* Finish: Zinc or Black
* Lever Disconnect
* Size: 10" ~ 28"
* Load Capacity: 100 lbs
* Material: Cold Rolled Steel



 MODEL 4900 Soft Closing Ball Bearing Slide

* Full Extension
* Side Mounted
* 46mm Height
* Flat Sided Profile
* 12.7mm Side Clearance
* Finish: Zinc or Black
* Lever Disconnect
* Size: 10" ~ 28"
* Load Capacity: 100 lbs
* Material: Cold Rolled Steel

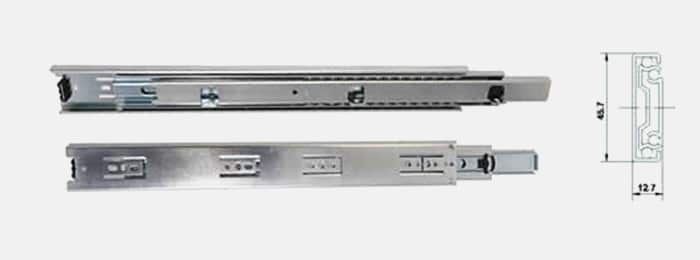

MODEL 4625 Ball Bearing Shelf Slide

* Full Extension
* Side Mounted
* 46mm Height
* Flat Sided Profile
* 12.7mm Side Clearance
* Finish: Zinc or Black
* Lever Disconnect
* Size: 10" ~ 28"
* Load Capacity: 100 lbs
* Material: Cold Rolled Steel

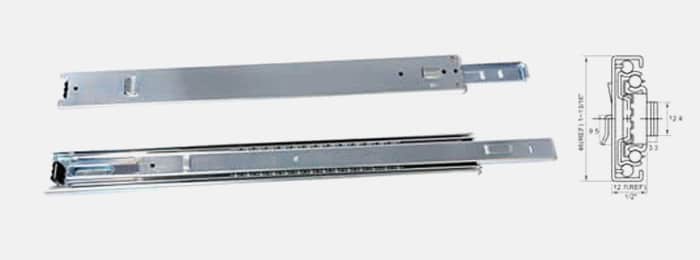

MODEL 4700 Bayonet Ball Bearing Slide

* Full Extension
* Side Mounted
* 46mm Height
* Flat Sided Profile
* 12.7mm Side Clearance
* Finish: Zinc or Black
* Lever Disconnect
* Size: 10" ~ 28"
* Load Capacity: 100 lbs
* Material: Cold Rolled Steel



MODEL 5000 Progressive Ball Bearing Slide

* Full Extension
* Side Mounted
* 12.7mm Clearance
* Material: Cold Rolled Steel
* Finish: Zinc or Black
* Lift-Off Disconnect Drawer Rail
* Size: 12" ~ 28"
* Load Capacity: 150 lbs

MODEL 5300 Heavy Duty Ball Bearing Slide

* Full Extension
* Side Mounted
* 53mm Height
* Round Sided Profile
* 12.7mm Side Clearance
* Finish: Zinc or Black
* Lever Disconnect
* Size: 10" ~ 28"
* Load Capacity: 150 lbs
*Material - Cold Rolled Steel
